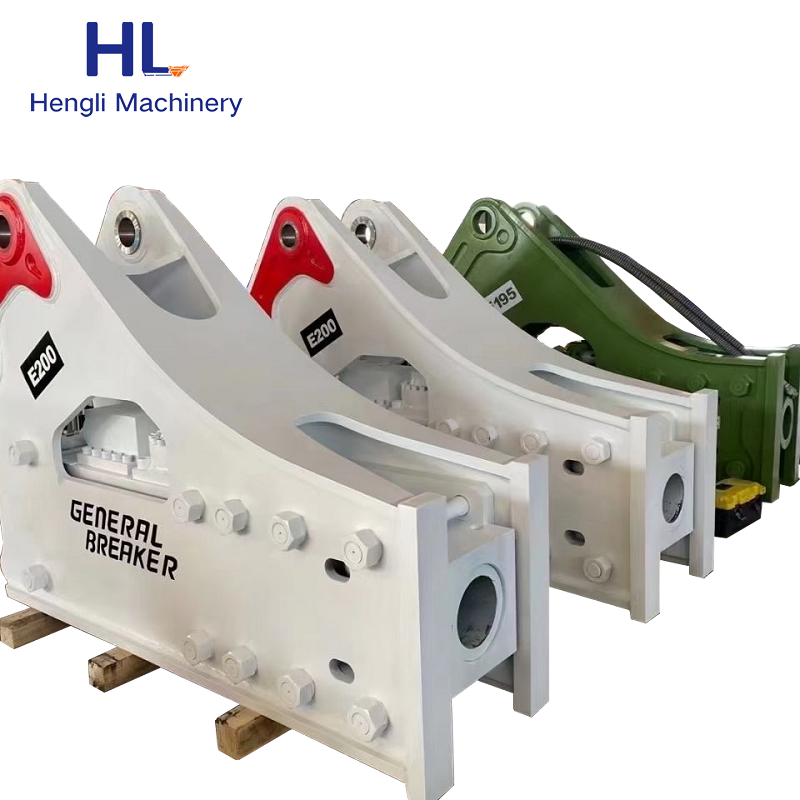

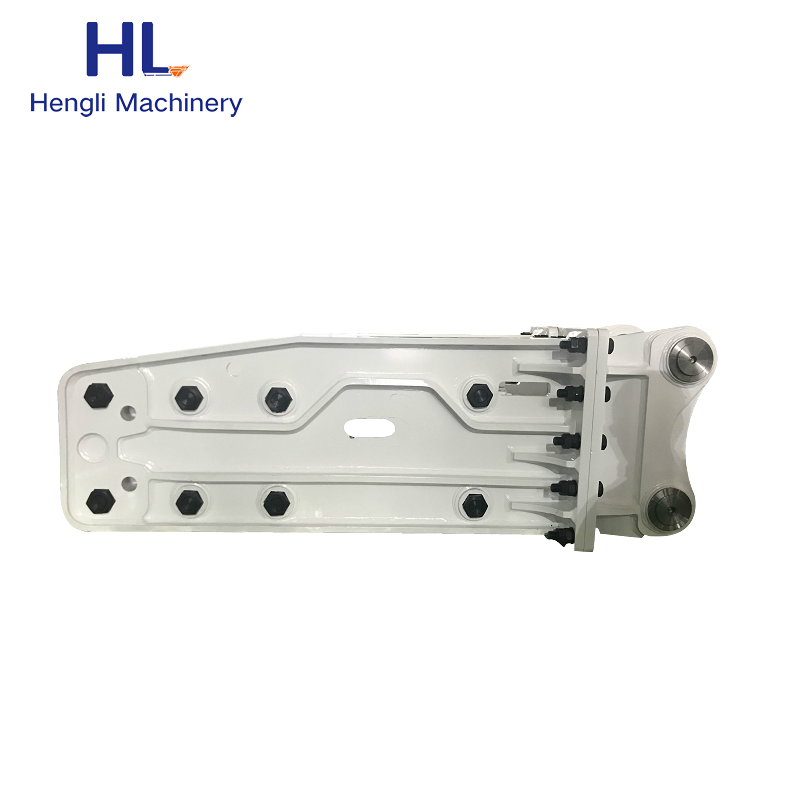

4890kg 65 Ton Excavator Hydraulic Breaker For Demolition
HL200 Hydraulic hammer China supplier wholesale high quality hydraulic breaker for excavator for demolition
Classifiion of hydraulic breakers:
Hydraulic crushers can be divided into many types.
1. Classified by operation mode:Hydraulic crusher is divided into two egories: handheld and unloaded.
2. Classifiion according to the working principle: hydraulic breakers are divided into three egories: full hydraulic type, combined liquid and gas type and nitrogen explosion type.
The hydraulic-pneumatic combination type relies on hydraulic oil and compressed nitrogen gas at the rear to simultaneously expand and push the piston. Most of the crushers belong to this egory;
3. According to the structure of the distribution valve: hydraulic breakers are divided into two types: built-in valve type and external valve type.
In addition, there are various other classifiions, such as stroke feedback and pressure feedback circuit breakers based on the feedback method.
· Divided into low-noise type and standard type crushers according to the size of the noise;
· According to the shell form, it can be divided into triangular and tower crushers;
· According to the shell structure, it can be divided into plywood type and box frame type crusher and so on.
| project | unit | HL200 |
| total length | mm | 3450 |
| working weight | kg | 4890 |
| ib | 10736 |
| work pressure | kgf/cm2 | 240-260 |
| psi | 3412-3697 |
| oil quantity | l/min | 280-360 |
| gpm | 73.9-94.9 |
| Strike frequency | bpm | 200-280 |
| Drill rod diameter | mm | 200 |
| inch | 7.66 |
| Drill rod length | mm | 1800 |
| inch | 70.76 |
| Drill rod weight | kg | 385 |
| Tubing size | mm | 32 |
| inch | PF1-1/4" |
| Suitable for excavators | ton | 50-65 |
| m3 | 1.8-2.8 |
| item | value |
| Marketing Type | Hot Product 2022 |
| Place of Origin | China |
| province | Guangdong |
| brand | HL |
| Warranty | 1 Year |
| new or old | New |
| use | construction work |
| Suitable Excavator(ton) | 50-65 |
| Core Components | mainbody |
| Brand | HL |
| Payment | T/T;MoneyGram;Western Union;D/P;D/A;T/T |
| Delivery | 5-15 Days |
| Process | forging |
| Local Service Loion: | None |
| Warranty of core components | 1 years |
| After Warranty Service | Video technical support, Online support |
| After-sales Service Provided | Video technical support, Online support |
Guangzhou Hengli Construction Machinery was established in 2011 and we have a physical store as well as a marketing and after-sales operation center in the central area of Guangzhou, Guangdong Province, with 500 and 800 square meters respectively. Our main products include: forged bucket teeth, forged bucket adapters, bucket tooth pins, DDR brand high wear-resistant bucket pins, bucket bushings, screws, gaskets, etc. We are specialized in selling chassis parts, engine parts, hydraulic parts, gear parts, vulnerable parts, hammer parts, hydraulic cylinders, filter series and other construction machinery parts. We warmly welcome domestic and foreign customers to cooperate and create a better future together.
